Debug Expansion Card (UART/EC-S/USB-C) for DC-ROMA RISC-V mainboard
Debug Expansion Card (UART/EC-S/USB-C) for DC-ROMA RISC-V mainboard
Regular price
$226.00
Regular price
Sale price
$226.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

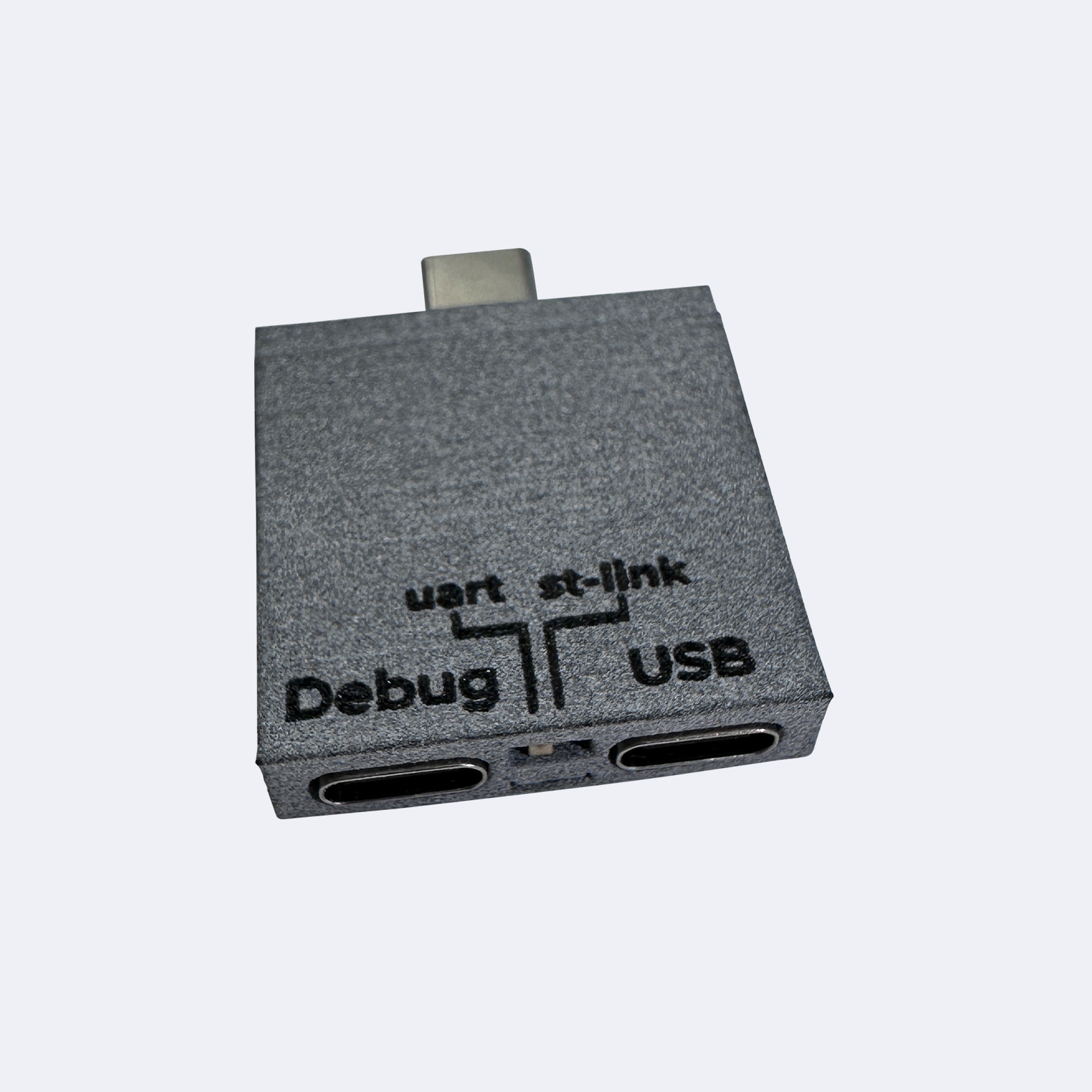

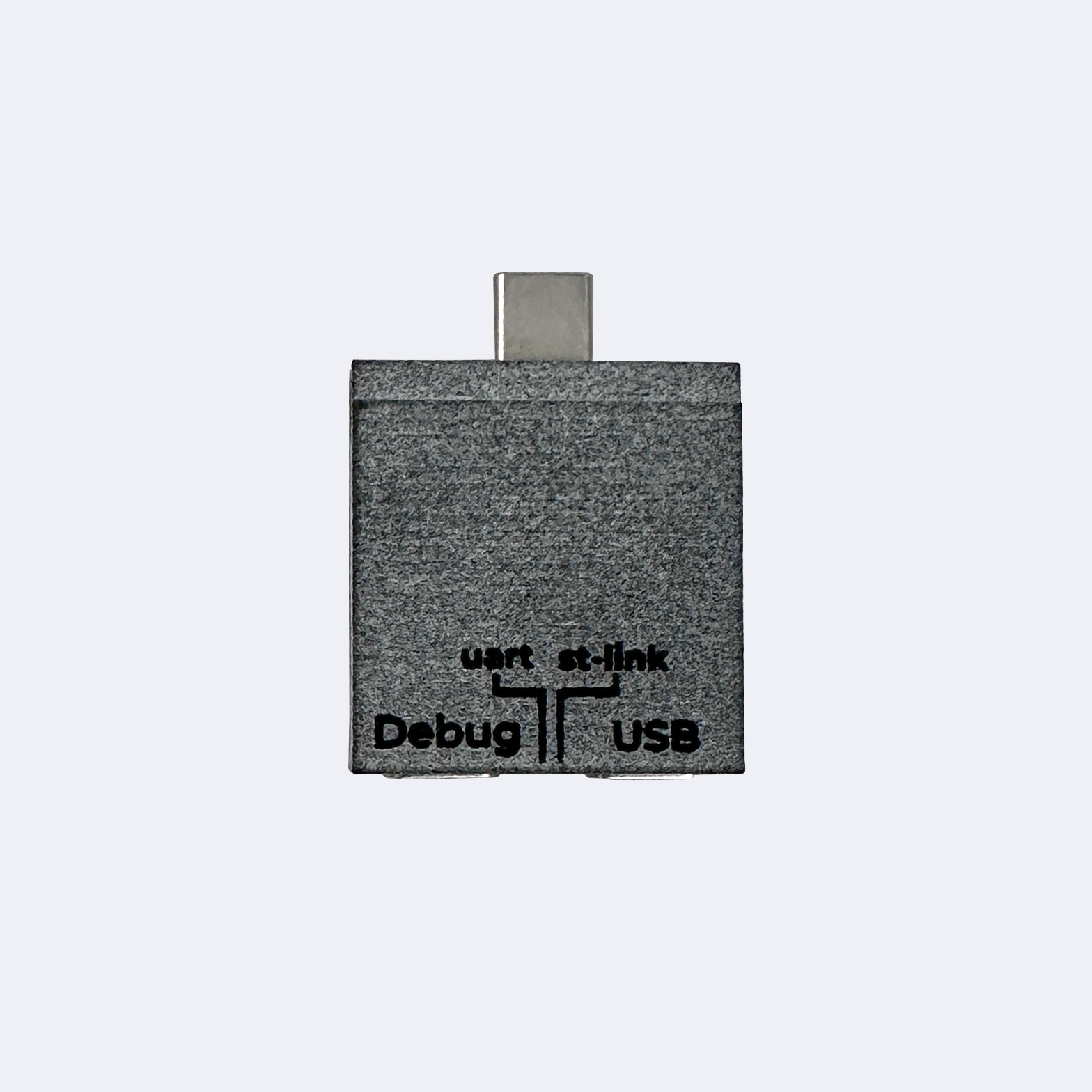

The Debug Expansion Card (UART/EC-S/USB-C) that splits a single USB-C port into two independent interfaces: one supporting USB 3.0 device connectivity and the other providing configurable debug functionality. The debug interface features a toggle switch for mode selection between serial UART mode and ST-LINK EC (embedded controller) flashing mode, addressing diverse development requirements.
Specifications
|
Input Interface
|
USB-C Male Plug
|
|
Output Interface
|
USB-C Female Port (Supports USB 3.0) Debug Female Port (Supports UART Serial Debugging and ST-LINK EC Flashing)
|
|
Transfer Speed
|
USB 3.0: Up to 5Gbps
|
|
Dimensions
|
32mm × 30mm × 6mm
|
Visit here for Product Manual
